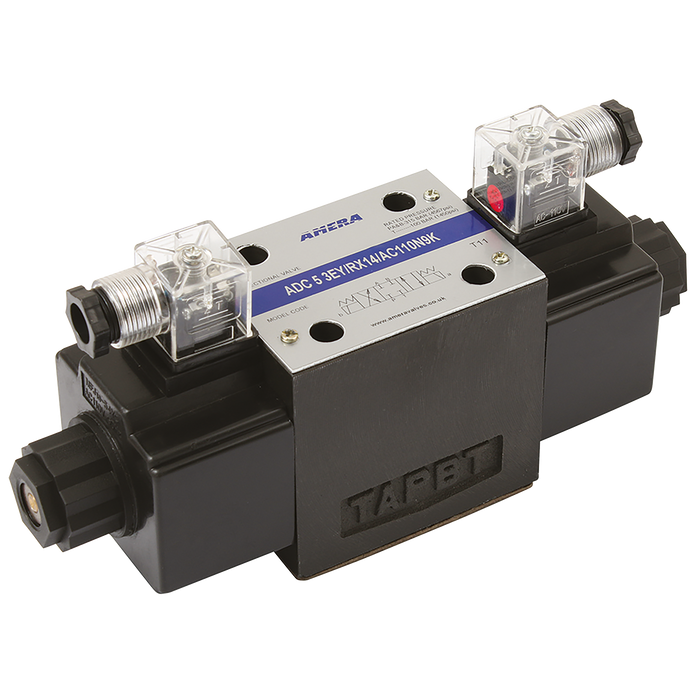

FT Pro - 1010-1070 ADC 5 3HY/RX14/DC24N9K

The FT Pro - 1010-1070 ADC 5 3HY/RX14/DC24N9K is a high-performance hydraulic CETOP control valve designed for efficiency and reliability. This 5 double solenoid valve features a 3-position configuration with all ports open and is spring-centered for optimal operation.

With a maximum flow rate of 120 litres per minute, it operates effectively within a working fluid temperature range of -20°C to +70°C. The valve supports a maximum working pressure of 315 bar and is compatible with viscosities ranging from 2.8 to 100 mm²/s, making it versatile for various applications.

Engineered to ISO 4401 Size 5 and DIN 24340 Size 10 standards, the FT Pro also boasts an IP65 rating, ensuring durability in challenging environments.
