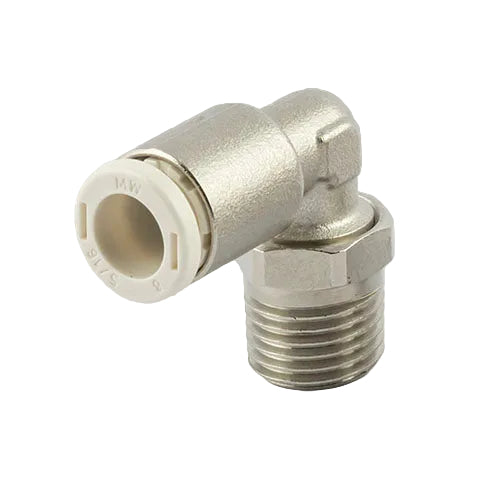

Metalwork - 2FP2C11 R31C F-E Plus Taper Elbow Fitting 8mm x 1/4

This Metalwork R31C F-E Plus Taper Elbow Fitting (2FP2C11) is a high-quality push-in connector designed for demanding pneumatic applications. Featuring a 90-degree swivel design, it allows for easy orientation and compact routing of 8mm OD tubing to a 1/4 inch BSP taper male thread. Constructed from nickel-plated brass with FKM/FPM seals, this fitting is optimized for high-temperature environments and chemical resistance, making it ideal for the food, medical, and pharmaceutical industries.

Key Features: - Body Material: Nickel-plated brass (NSF/ANSI 51 compliant)
- Connection 1: 8mm push-in port
- Connection 2: 1/4 inch BSPT male thread
- Temperature Range: -20°C to +150°C
- Working Pressure: -0.99 to 16 bar
- Seal Material: FDA-approved FKM/FPM
- Design: 90° male rotary swivel elbow
