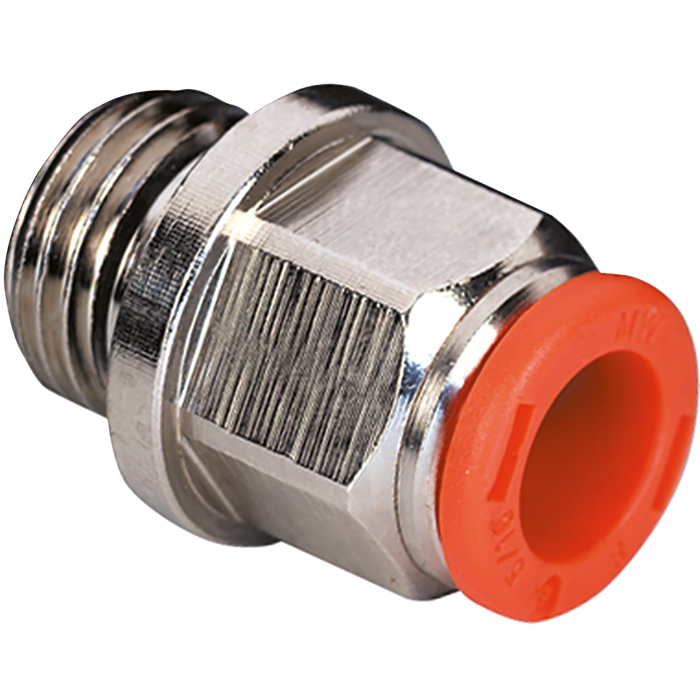

Metalwork - 2L01012 RL1 10mm x 1/4 Parallel Male Stud Push-in Fitting

The Metalwork 2L01012 RL1 is a high-quality straight push-in male stud fitting designed for reliable pneumatic connections. Part of the RL1 series, this miniaturized automatic fitting is constructed from durable nickel-plated brass, ensuring longevity and resistance to wear. It features a user-friendly push-in mechanism with a stainless steel clamping spring and NBR seals, allowing for quick, secure assembly and repeated use without compromising the airtight seal. Ideal for vacuum and compressed air applications, it provides a compact solution for connecting 10mm OD tubing to 1/4 inch threaded ports.

Key Features: - Quick-connect push-in design for efficient assembly
- Durable nickel-plated brass body and locking bushing
- Stainless steel clamping spring for secure tube retention
- Reusable connection with high-quality NBR sealing
- Compact, miniaturized profile for space-saving installationsSpecifications: - Part Number: 2L01012
- Series: RL1
- Tube Outside Diameter: 10mm
- Thread Size: 1/4 inch BSP Parallel
- Material: Nickel-plated Brass
- Pressure Range: -0.99 to 16 bar
- Temperature Range: -20°C to +80°C
- Medium: Vacuum and compressed air
