Metalwork - 2L05005X XR5 Ø10 - Ø10 AISI 316L Stainless Steel Fitting

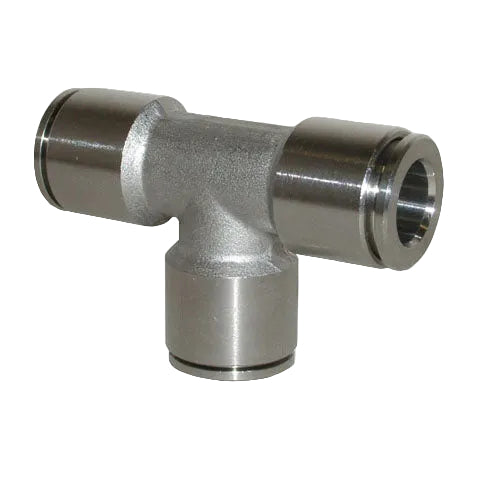

This Metalwork XR5 intermediate tee fitting (2L05005X) is engineered for high-performance pneumatic systems in demanding environments. Constructed entirely from AISI 316L stainless steel, it offers superior corrosion resistance, making it ideal for food, chemical, and marine industries. The push-in design features a 10mm diameter for both connections, ensuring a secure, leak-proof seal with FKM/FPM gaskets that withstand temperatures up to 150°C. Durable and reusable, this fitting provides a reliable solution where standard brass is incompatible.

Key Features: - AISI 316L stainless steel body and bushing
- FKM/FPM seals for high-temperature resistance
- Easy push-in connection for 10mm piping
- NSF/ANSI 169 certified for food contact
- Rated for vacuum and pressures up to 18 barSpecifications: - Part Number: 2L05005X
- Type: XR5 Intermediate Tee
- Connection: Ø10 - Ø10 - Ø10
- Temperature Range: -20°C to +150°C
- Material: 316L Stainless Steel
