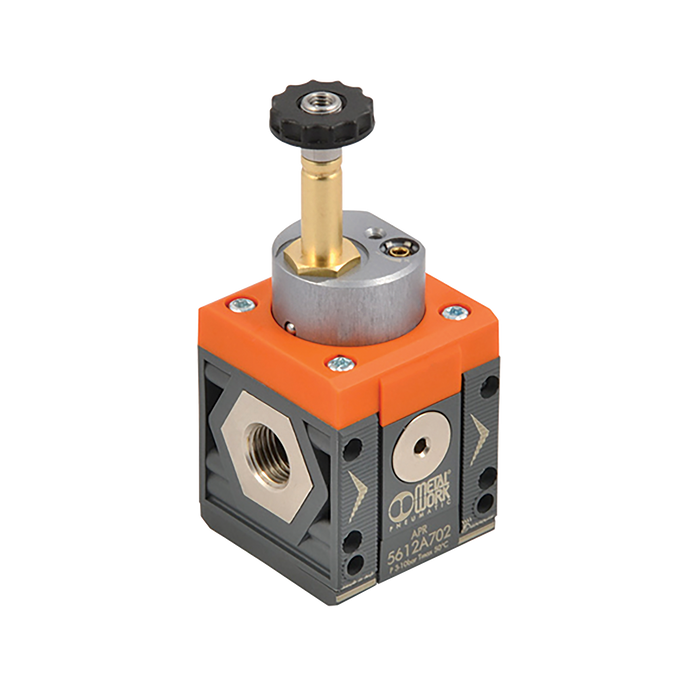

Metalwork - 5612A702 Syntesi SY1 1/4 Electropneumatic Progressive Starter Valve

Enhance your pneumatic systems with the Metalwork 5612A702 Syntesi SY1 1/4 Electropneumatic Progressive Starter Valve. This high-performance soft-start valve ensures safety by gradually introducing air into the circuit, preventing sudden pressure bursts and uncontrolled actuator movement. Part of the modular Syntesi line, it offers high flow rates in a compact, corrosion-resistant technopolymer design.

Key Features: - Two-stage gradual pressurization
- Adjustable pressure ramp via pin
- Full-port flow at 40-60% upstream pressure
- Integrated downstream pressure relief
- Electropneumatic control for remote operation
- Compact and lightweight Syntesi SY1 series
- Excellent corrosion resistanceSpecifications: - Part Number: 5612A702
- Thread Size: 1/4 BSPP
- Body Size: Size 1
- Pressure Range: 3 to 10 bar
- Temperature Range: -10 to +50 C
- Medium: Compressed air or inert gases
