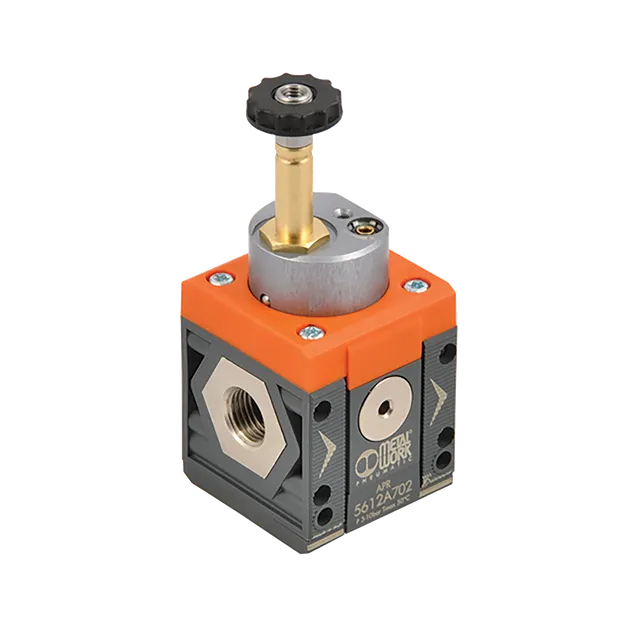

Metalwork - 5620A700 Syntesi SY2 Electro-Pneumatic Progressive Starter Valve Without Bushing

Enhance your pneumatic system with the Metalwork 5620A700 Syntesi SY2 Electro-Pneumatic Progressive Starter Valve. This high-performance soft-start valve ensures safety by allowing air to enter the circuit gradually, preventing sudden pressure bursts and uncontrolled actuator movement. Designed for durability and precision, it features a sophisticated two-stage operation that achieves full flow once downstream pressure reaches 40-60% of the inlet level.

Key Features: - Electro-pneumatic control for gradual system pressurization
- Two-stage internal valve system for controlled start-up
- Integrated relief function for quick downstream exhaustion
- Robust technopolymer and nickel-plated brass construction
- Modular Syntesi SY2 design for easy integration without bracketsSpecifications: - Series: Syntesi SY2
- Type: Progressive Starter (Soft Start)
- Inlet Pressure: 3-10 bar (43-145 psi)
- Temperature Range: -10 to +50 C
- Flow Rate: Up to 4800 Nl/min at 6.3 bar
- Discharge Port: 1/4 inch
- Mounting Position: Any position
