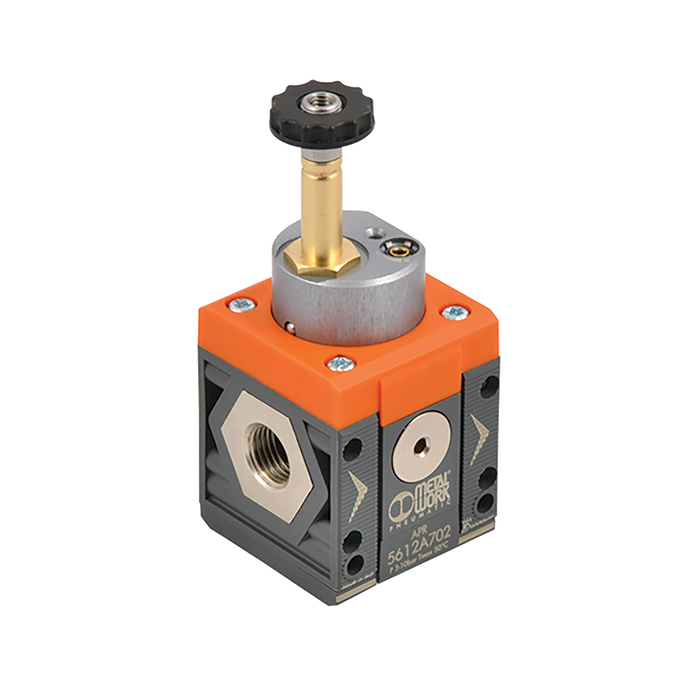

Metalwork - 5626A706 Syntesi SY2 1" Electro-Pneumatic Progressive Starter Valve

The Metalwork 5626A706 Syntesi SY2 1 inch Electro-Pneumatic Progressive Starter Valve is a high-performance solution for gradual pressure buildup in industrial pneumatic systems. Designed to prevent sudden pressure peaks, this valve ensures smooth and controlled startup, protecting downstream actuators and sensitive components from damage. Its sophisticated two-stage operation allows for an adjustable initial air flow before reaching full-port flow, enhancing machinery safety and operational longevity.

Key Features: - Body size: Syntesi SY2
- Port size: 1 inch NPT/BSP female
- Type: 3-port, 2-position electro-pneumatic
- Pressure range: 3 to 10 bar (43-145 psi)
- Flow rate: Up to 4800 Nl/min
- Material: Robust technopolymer and nickel-plated brass
- Adjustable pressure ramp-up speed via integrated pin
- Integrated 1/4 inch ports for gauges or additional take-offs
