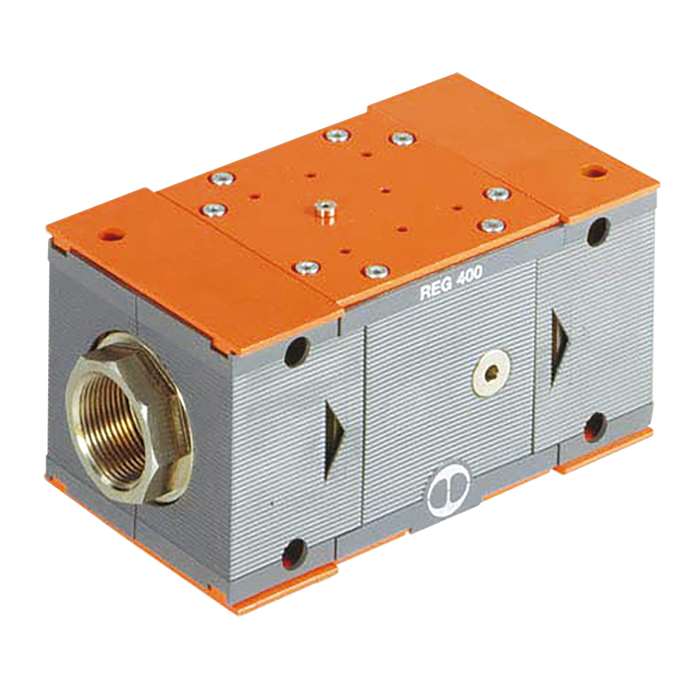

Metalwork - 6302001 Skillair 400 1 1/2" Compressed Air Pressure Regulator

The Metalwork Skillair 400 1 1/2" Compressed Air Pressure Regulator (6302001) is a high-performance solution for precise pneumatic control. Designed for large-scale industrial systems, it utilizes a rolling diaphragm to provide superior accuracy and higher flow rates compared to traditional flat designs. This regulator ensures a stable downstream pressure regardless of fluctuations in the supply line, protecting sensitive equipment from damage. Its modular design allows for easy maintenance and seamless integration into existing FRL units.

Key Features: - Rolling diaphragm for increased stroke and sensitivity
- High flow capacity up to 18000 Nl/min
- Robust aluminum body with NBR seals
- Modular Skillair system for compact installation
- Standard G1 1/2" threaded portsSpecifications: - Part Number: 6302001
- Series: Skillair 400
- Port Size: 1 1/2" BSPP
- Max Input Pressure: 13 bar (188 psi)
- Regulation Range: 0 to 12 bar
- Temperature Range: -10°C to +50°C
- Weight: 4.8 kg
