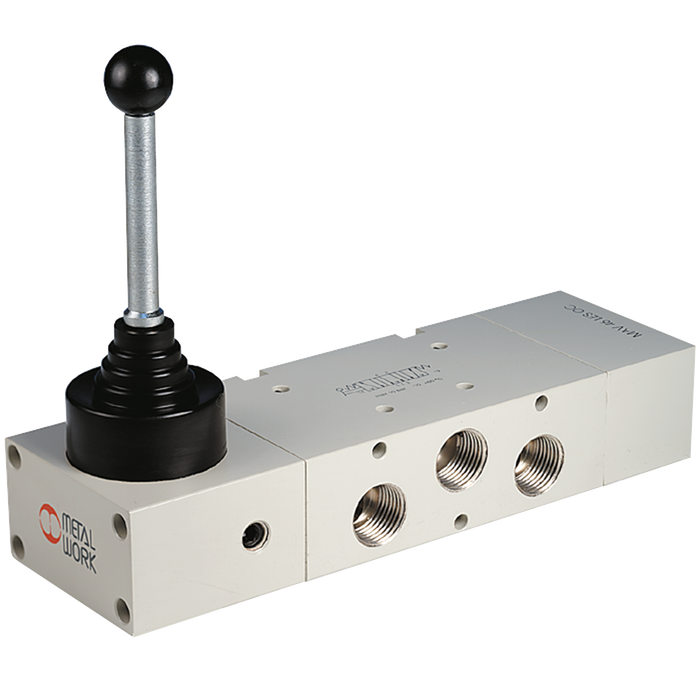

Metalwork - 7030000900 S70 1/2 5/3 90 Degree Lever Spring Open Center Valve

The Metalwork 7030000900 is a high-performance Series 70 manual lever valve designed for precision control of double-acting cylinders. This 1/2 inch, 5/3-way valve features a 90-degree lever for ergonomic operation and an open-center configuration, ensuring ports are vented in the neutral position for safety and manual adjustment.

Key Features & Benefits: - Reliable Manual Control: 90-degree lever with spring return for consistent monostable operation.
- Open Center Design: Ideal for material clamping, allowing manual piston movement without resistance when not actuated.
- Heavy-Duty Construction: Robust aluminum body with NBR gaskets for industrial durability.
- High Flow Capacity: Optimized for 1/2 inch BSP ports with a flow rate of up to 4600 Nl/min.Specifications: - Part Number: 7030000900
- Type: 5/3 Open Center (OC)
- Port Size: 1/2 inch BSP
- Pressure Range: Vacuum to 10 bar
- Temperature: -10°C to 60°C
