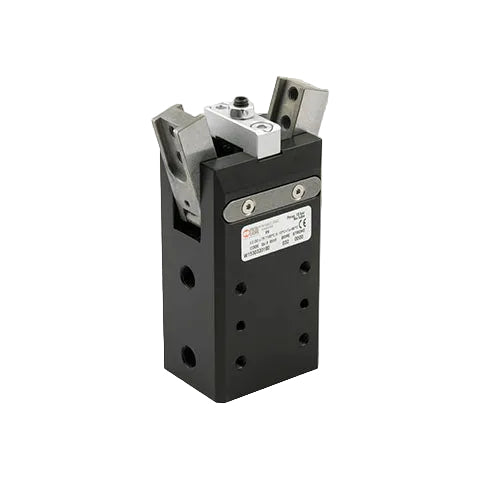

Metalwork - W1530320180 Series P9 Handling Gripper 32mm

The Metalwork W1530320180 Series P9 Handling Gripper is a high-performance 180 degree angular pneumatic gripper designed for precision industrial automation. This 32mm bore unit features a toggle-type mechanism with two hinged jaws, providing exceptionally high clamping forces for secure part handling. Built for longevity, it consists of a hard-anodized aluminum body with tempered steel jaws and moving parts.

Key Features: - 180 degree angular jaw opening for wide-range part clearance
- High clamping force (160N at 6.3 bar)
- Integrated magnets and sensor slots for seamless position monitoring
- Durable hard-anodized aluminum and tempered steel construction
- Flexible mounting options (bottom or side fixing)Specifications: - Bore: 32mm
- Operating Pressure: 2 to 8 bar
- Temperature Range: -10 to +80 Celsius
- Fluid: Filtered air (lubricated or unlubricated)
- Weight: 0.85 kg
