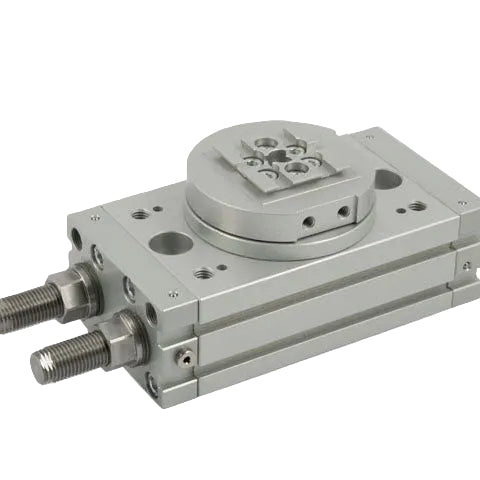

Metalwork - W1630202180K R3 Rotary Actuator 20mm Bore 180° Stroke (VL)

The Metalwork W1630202180K R3 Rotary Actuator provides high-performance motion control for industrial automation. Part of the V-Lock series, this pneumatic actuator features a dual-rack design with automatic wear adjustment to ensure consistent torque and precision. The 20mm bore and 180-degree adjustable stroke offer versatility for complex handling tasks. Its compact, flange-mounted body includes integrated slots for magnetic proximity sensors, allowing for seamless system integration and reliable position sensing in a robust, anodized aluminium housing.

Key Specifications: - Series: R3 V-Lock
- Bore Size: 2x20mm
- Rotation Angle: 0 to 180 degrees
- Technology: Double rack-and-pinion
- Pressure Range: 3 to 7 bar
- Operating Temperature: -10 to 80 degrees Celsius
- Theoretical Torque: 1.8 Nm at 6 bar
- Mounting: Flange-mounted (V-Lock compatible)
- Material: Anodized aluminium body and flange; hardened steel pinion/rack
