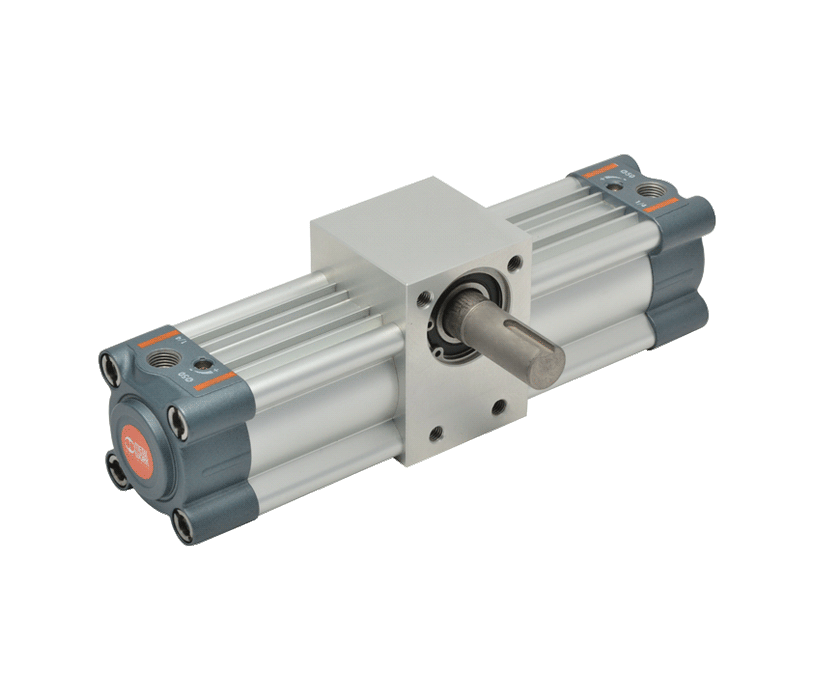

Metalwork - W1650401090 R1 Series Rotary Actuator 40mm 90 Degree No Adjustment

The Metalwork R1 Series Rotary Actuator (W1650401090) is a high-quality, rack-and-pinion pneumatic component designed for precise 90-degree rotation in industrial automation. Built with a 40mm bore and a durable anodized aluminum body, it provides reliable torque for demanding tasks. This magnetic version includes a male pinion and is designed without mechanical stroke adjustment for a streamlined, compact profile. It is ideal for applications requiring consistent, repeatable angular motion with high radial and axial load resistance.

Key Features: - Series: R1 Rotary Actuator
- Bore Size: 40mm
- Rotation Angle: 90 Degrees
- Type: Rack-and-pinion
- Pinion: Male
- Magnetic: Yes (for position sensing)
- Adjustment: No mechanical stroke adjustment
- Theoretical Torque: 11 Nm at 6 bar
- Operating Pressure: Up to 10 bar
