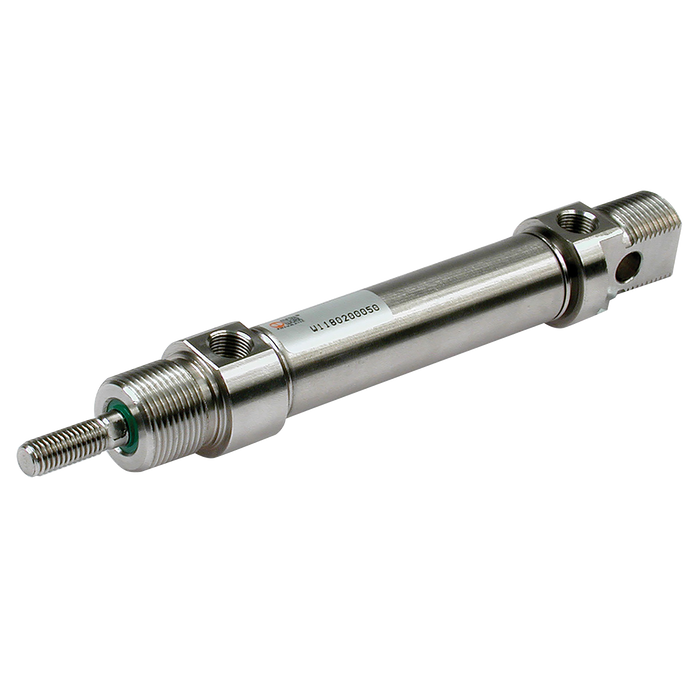

Metalwork - W1800200100 Stainless Steel Mini Cylinder 20mm Bore 100mm Stroke

Enhance your industrial systems with the Metalwork W1800200100, a high-quality ISO 6432 mini cylinder designed for precision and longevity. Featuring a 20mm bore and 100mm stroke, this double-acting pneumatic actuator ensures reliable linear motion in both directions. Built with a 304 stainless steel barrel and a 316 stainless steel piston rod, it offers superior corrosion resistance, making it ideal for harsh environments and washdown applications in the food, chemical, and pharmaceutical sectors. Its compact, chamfered design allows for easy installation in space-restricted areas.

Key Specifications: - Brand: Metalwork
- Part Number: W1800200100
- Standard: ISO 6432
- Bore: 20mm
- Stroke: 100mm
- Type: Double-acting
- Magnetic: Yes (for position sensing)
- Barrel Material: AISI 304 Stainless Steel
- Piston Rod Material: AISI 316 Stainless Steel
- Operating Pressure: Up to 10 bar
- Temperature Range: -10 to +80 Celsius
- Fluid: Filtered air (lubricated or non-lubricated)
