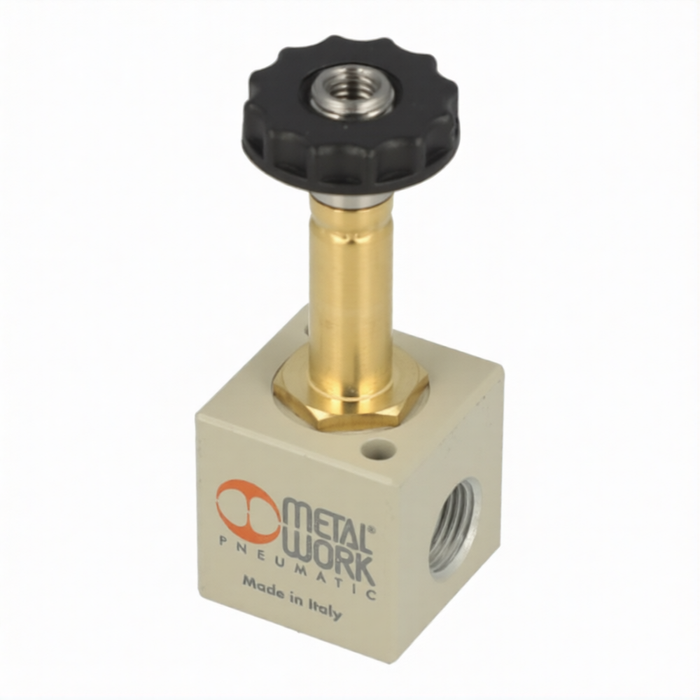

Metalwork - W4017000100 PIV-I 2/2 NC M5 1.2 Solenoid/Spring Valve

The Metalwork W4017000100 PIV-I is a high-performance 2/2-way normally closed solenoid valve designed for precise pneumatic control. This compact in-line valve features an M5 threaded port and a 1.2mm orifice, making it ideal for applications requiring high operating frequencies and rapid response times. Built for durability, it supports installation in any position and works reliably with filtered air.

Features and Benefits: - Rapid Response: Optimized for low response times and high-frequency cycles.
- Compact In-Line Design: Space-saving M5 threaded ports for easy integration.
- Versatile Installation: Operates efficiently in any mounting orientation.
- Robust Construction: High-quality solenoid operator for extended service life.Key Specifications: - Model: PIV-I (PIV 42I5S NC)
- Type: 2/2 Way, Normally Closed (NC)
- Connection: M5 Threaded
- Orifice: 1.2 mm
- Flow Rate (Kv): 0.65
- Operating Pressure: 0 to 10 bar
- Temperature Range: -15°C to 50°C
- Protection Rating: IP65 (with connector)
