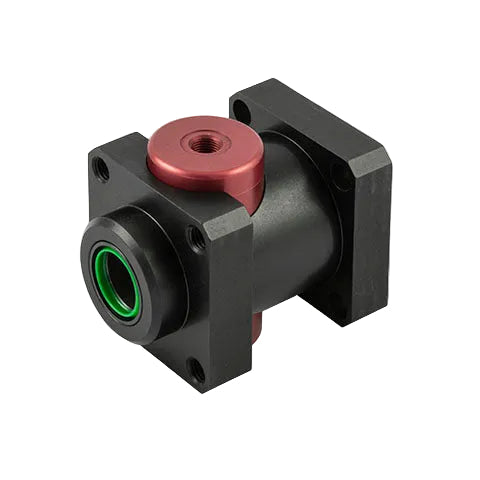

Metalwork - W5010001104 Series RL Mechanical Rod Lock 50mm Bore

The Metalwork Series RL Mechanical Rod Lock (W5010001104) is a high-performance safety component designed for ISO 15552 pneumatic cylinders. This normally closed (NC) device provides a secure mechanical grip on the 50mm bore piston rod, preventing movement during pressure loss or emergency stops. Its compact, anodized aluminum housing allows for easy integration into space-constrained industrial automation systems.

Key Features & Specifications: - Compatibility: Designed for 50mm bore ISO 15552 cylinders
- Function: Normally Closed (NC) - blocks without pressure, releases with pressure
- Operating Pressure: 3 to 8 bar
- Temperature Range: 0°C to 80°C
- Construction: Anodized aluminum housing with brass clamps and NBR seals
- Bi-directional: Provides holding force in both directions
- Port Size: G 1/8
