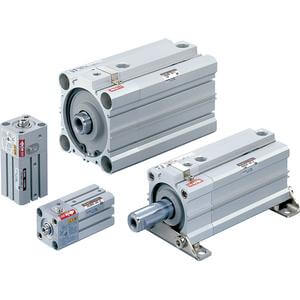

SMC CDLQB20-15D-F, C(D)LQ, Compact Cylinder, Double Acting, Single Rod, With Lock

Compact cylinder series CLQ, although equipped with locking function, is designed to minimize the overall length. Overall length of the model is achieved to be the same as that of the CQ2 compact cylinder. CLQ is available in 5 bore sizes ranging from 40 to 100mm and is auto switch capable., Magnet: D (Built-in)
Mounting: B (Through Hole)
Bore Size: 20mm
Thread: M5x0.8 (20-25 Bore); Rc (32-100 Bore)
Stroke: 15mm
Body Option: Standard
Locking Direction: F (Forwarding Stroke Lock)
Auto Switch: No Switch
Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
Number: 2 pcs. (Or None in the Case of No Switch)
