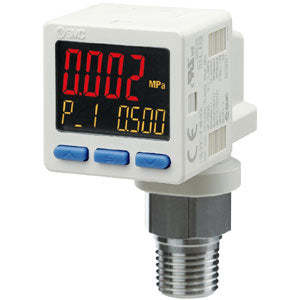

SMC ISE20C-V-02-W, ISE20C(H), High-Precision, Digital Pressure Switch for General Fluids

High-Precision Digital Pressure Switches
3-Screen, 3-Colour Display
Applicable fluid: air, non-corrosive gas, non-flammable gas, or general fluids
Pressure ranges: from -0.1 to 2 MPa
Repeatability: ±0.2 % F.S.
Output: IO-Link, NPN/PNP or Analogue (Voltage/Current)
Select response time: from less than 1.5 ms to 5 s.
M12 connector available
IP40 or IP65
Consumption: 35 mA or less., Output Specification: V (PNP Open Collector 2 Outputs + Analogue Current Output)
Series: ISE20
Rated pressure range: C (-0.1 to 1 MPa)
Bracket: None
Piping Specification: 02 [R1/4, (M5, Female Threaded)]
Unit Specification: w/Unit Selection Function
Piping Direction: Rear Ported
Lead Wire: W (Lead Wire w/Connector, 5-core, 2 m Lead Wire, Waterproof)
Operation Manual: Operation Manual, w/o Calibration Certificate
