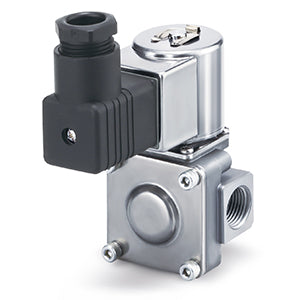

SMC JSXD61-CN10F-JDN-B, JSXD, Pilot Operated 2-Port Solenoid Valve

Direct /Pilot Operated 2-Port Solenoid Valve
Applicable fluid: air, water, oil
Flow rate up to 2200 l/min (water)
Orifice diameter: 1.6 to 50 mm
Port size: 1/8" to 2"
Body material: stainless steel, brass, bronze and aluminium
Coil material: stainless steel
Enclosure: IP67., Size: 6 (60)
Valve Type: 1 (Normally Closed)
Body Material: C (Brass)
Seal Material: N (NBR)
Port Size: 10 (1)
Thread Type: F (G)
Rated voltage: J (230 VAC)
Electrical Entry: DN (without DIN Connector, w/Surge Voltage Suppressor)
Oil-free Option: None
Bracket: B (Bracket)
