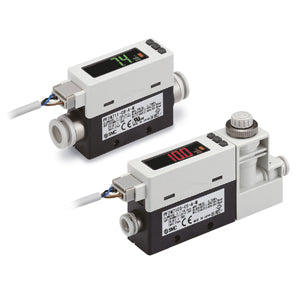

SMC PF2M705-C4-F, PF2M7, Digital Flow Switch, 2-Colour Display

Digital flow switch with integrated display
Applicable fluid: Dry air, nitrogen, carbon dioxide, argon
2-colour display
Flow adjustment valve option
Flow ratio 100:1
Rated flow ranges: from 0.01 to 100 l/min
Output: PNP/NPN, analogue (voltage/current) and/or IO-Link
Repeatability: ±1.0% F.S.
Consumption: 35 mA or less., Rated Flow Range: 05 (0.05 to 5 L/min)
Flow Adjustment Valve: None (Straight)
Port Size: C4 (ø4)
Output Specification: F (Out 1: PNP; Out 2: Analogue 4 to 20 mA)
Lead Wire: Lead Wire w/Connector
Unit Specification: Unit Selection Function
Bracket/Panel Mount Adapter: No Bracket
Calibration Certificate: None
