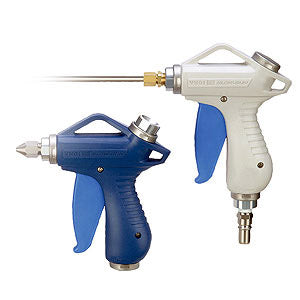

SMC VMG11BU-F02, VMG, Blow Gun, Standard Type
SKU VMG11BU-F02
Original price
£40.69
-
Original price
£40.69
Original price
£40.69
£40.69
-
£40.69
Current price
£40.69
Taking energy-saving into consideration, blow gun series VMG has a large effective area of 30mm ² (without nozzle) with a ratio of 10.7:1 over the traditional air guns. Pressure loss is 1% or less when nozzle bore size 2.5mm is used. Due to adoption of balance type, lever operation force is not adversely affected by supply pressure. Piping direction is optional from top or bottom and nozzle is also optional., Piping: 1 (Bottom Direction)
Body Color: BU (Dark Blue)
Piping Type: F (G(PF))
Connection Size: 02 (Screw-in (Port Size 1/4))
Nozzle: w/o Nozzle
Nozzle Cover: None
