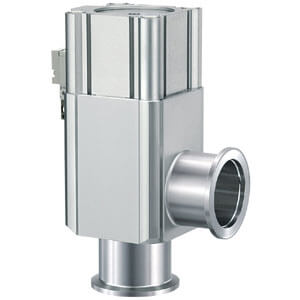

SMC XLAV-25G-2M9//-5GZ-XF1A-Q, XLAV-2, Aluminium High Vacuum Angle Valve, Normally Closed/Bellows Seal with Solenoid Valve

High vacuum angle valve series XL provides excellent thermal conductivity results in a uniform temperature for the entire valve body and a marked decrease in the condensation of gases inside the valve. The valve does not contain heavy metals such as Ni (nickel) or Cr (chrome) and a low sputtering yield also helps to minimize heavy metal contamination of semiconductor wafers., Flange Size: 25
Flange Type: KF (NW)
Valve Direction: G (w/Indicator, Rear Flange Surface)
Auto Switch: M9// (w/o Auto Switch w/Built-in Magnet)
Lead Wire: 05 M (Or None in the Case of No Auto Switch)
Number: None
Rated Voltage: 5 (24 VDC)
Electrical Entry: G [Grommet (Lead Wire Length 300mm)]
Surge Suppressor: Z (w/Light & Surge Voltage Suppressor)
Body Surface Treatment: External: Hard Anodized - Internal: Raw Material
Seal Material: F1 (FKM, Same Specs as Standard FKM)
Seal Replacement (Refer to PDF on page 4): A (2-3-4)
CE Marked: Q (CE Marked)
